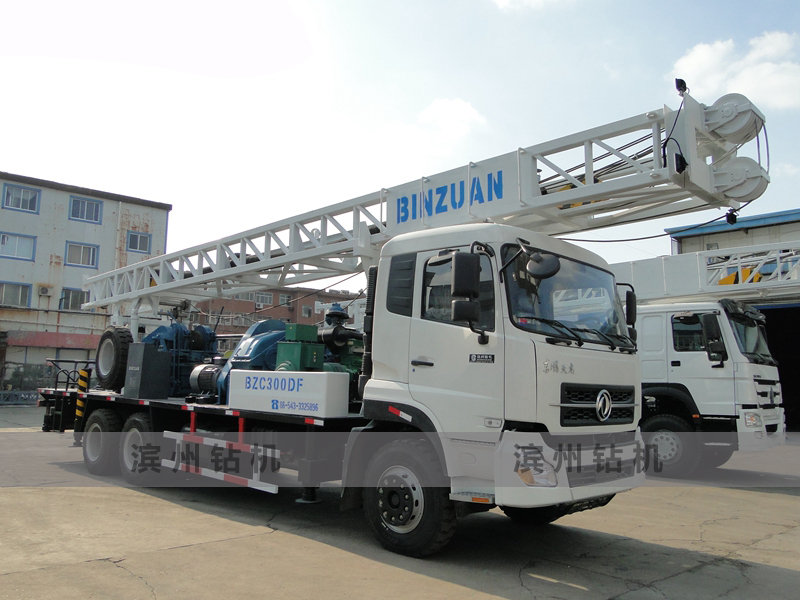

BZC300CDF Truck mounted water well drilling machine

Description:Chassis: DONGFENG TRUCK 6X4 Truck mounted water well drilling rig 300m mud drilling and air drilling

Ordering hotline:+86 543 3325896

Send mail to us:welldrillingrig@126.com

Make an inquiry

Main features

1.BZC300CDF truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.

2.The truck chassis is adopt the special  6×4 chassis of brand DONGFENG TRUCK, diesel engine, the main transmit, gearbox, sets of windlass, mud pump, mast are setup on the chassis.

3.This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2 mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

4.The power of drilling rig comes from the extra diesel engine or diesel  generator unit.

5.The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

6.The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

7. According to client’s requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuang; can carry out air lifting reverse circulation drilling with air-water used tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with 850/20A mud pump; can carry out core-drilling with other special drilling tools.

8.The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is populated by domestic and foreign clients.



Technical parameter

 Max-Drilling depthM

300

 Drilling diametermm

500

 Speed of turntabler/min

5075114

 Torque of turntableKN.m

13.28.85.8

 Single rope lifting capacity of main windlassKN

40

 The lifting capacity of hookKN

240

Single rope Lifting capacity of assistant winch (KN )

30

 The height of mast (mm)

 11900

 Bearing capacity (t)

28

Pipe

 Kelly mm

108×108×7500

 Assistant pipe (mm)

Ф89×10×5500









BW850/2

plunger pump



 Diameter of cylinder (mm)

150

 Stroke of piston (mm)

180

Theory of flow (L / min)

600      850

Rated pressure (Mpa)

3         2

Pounding  times (min-1)

58        82

 Diameter of suction tube (mm)

127

 Diameter of drain pipe (mm)

64

 Input speed (r / min)

470

 Input power (kw)

40

 Overall dimensions (mm)

2000*1030*1400

Weight (t)

1.5

  Diesel Engine

Engine

Dongfeng Cummins 97KW

 Speed r/min

2200

Chassis

YUCHAI 162kw

Transportation size(mm)

12400×2480×3700

Working size (mm)

10290×2480×13680
