Description：BZT1500 trailer mounted water well drilling rig are famous in Africa market.
Ordering hotline：0086-543-3325896
Send mail to us：bzdyjx@163.com

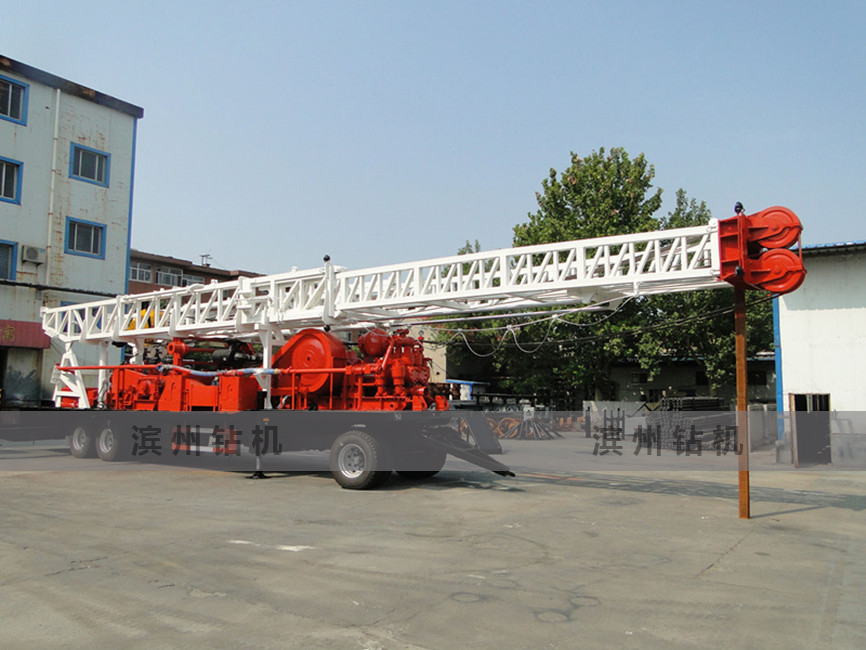

BZT1500 Trailer mounted water well drilling rig is new designed drilling machinery by our factory.The drill rig design is reasonable designed, completely equipped, superior performance, can do more drilling technology eg. Mud cycle, air foam drilling, pneumatic DTH hammer, air reverse circulation drilling etc. So the drilling rig can suitable for clay bed, sand layer,decomposed rock,bed rock etc different kind of stratum.
2. Character
2.1 The rig is direct circulation rotary drilling rig, with full trailer chassis,equipped steel off road tires.
2.2 An independent diesel engine ,strong power.
2.3 With double winches, high lifting power, three-speed, improved the working efficient.
2.4 With four hydraulic legs, two mechanical legs, double locked,even if the tanks leak, the chassis will not be unstable.
2.5 The tower adopt inside and outside extendable structure,controlled by hydraulic oil cylinder.
2.6 Equipped with 50KW generator, convenient for customers.
3. The parameter and main component
|
Main parameter |
||||||
|
1 |
drill depth（m) |
1000 |
1200 |
1500 |
||
|
2 |
drill rod（mm） |
89/114/127 |
89/114 |
89 |
||
|
3 |
Diesel engine |
Model |
Cummins NTA855-C360 |
|||
|
power(kw) |
269 |
|||||
|
speed(r/min) |
2100 |
|||||
|
4 |
rotary table |
Max inner diameter(mm) |
φ660 |
|||
|
speed (rpm) |
37,52,84,145 |
|||||
|
Max-torque(kn.m) |
25 |
|||||
|
5 |
main winch |
single rope lifting capacity (kn) |
90 |
|||
|
single rope speed (m/s) |
0.84,1.90,3.3 |
|||||
|
steel wire diameter(mm) |
φ26 |
|||||
|
steel wire capacity on drum |
160m |
|||||
|
6 |
assistant winch |
single rope lifting capacity (kn) |
50 |
|||
|
steel wire diameter(mm) |
φ20 |
|||||
|
steel wire capacity on drum |
160m |
|||||
|
7 |
K Tower |
total height (m) |
19.5 |
|||
|
efficient height(m) |
18.5 |
|||||
|
max-load (t) |
60 |
|||||
|
type |
K , retractable type |
|||||
|
pulley block |
5(front)+3(rear)+2(hung) |
|||||
|
pulley diameter(mm) |
600 and 450 |
|||||
|
8 |
Kelly with roller kelly bushing |
type (mm) |
108x108 |
|||
|
height(mm) |
12000 |
|||||
|
9 |
drill rod |
89/114/127*9400 |
||||
|
10 |
traveling hook |
load (T) |
60 |
|||
|
three pulley |
||||||
|
11 |
swivel |
rated load (t) |
60 |
|||
|
outlet diameter(mm) |
63.5 |
|||||
|
12 |
Reducer union |
for kelly and swivel |
||||
|
13 |
mud pump |
model |
BW1200/7 |
|||
|
pressure (Mpa) |
7 |
|||||
|
displacement(L/min) |
1200 |
|||||
|
14 |
dimension |
transportation size(LXWXH)mm |
15232x2800x4400 |
|||
|
working size(LXWXH)mm |
16720x3800x20300 |
|||||
