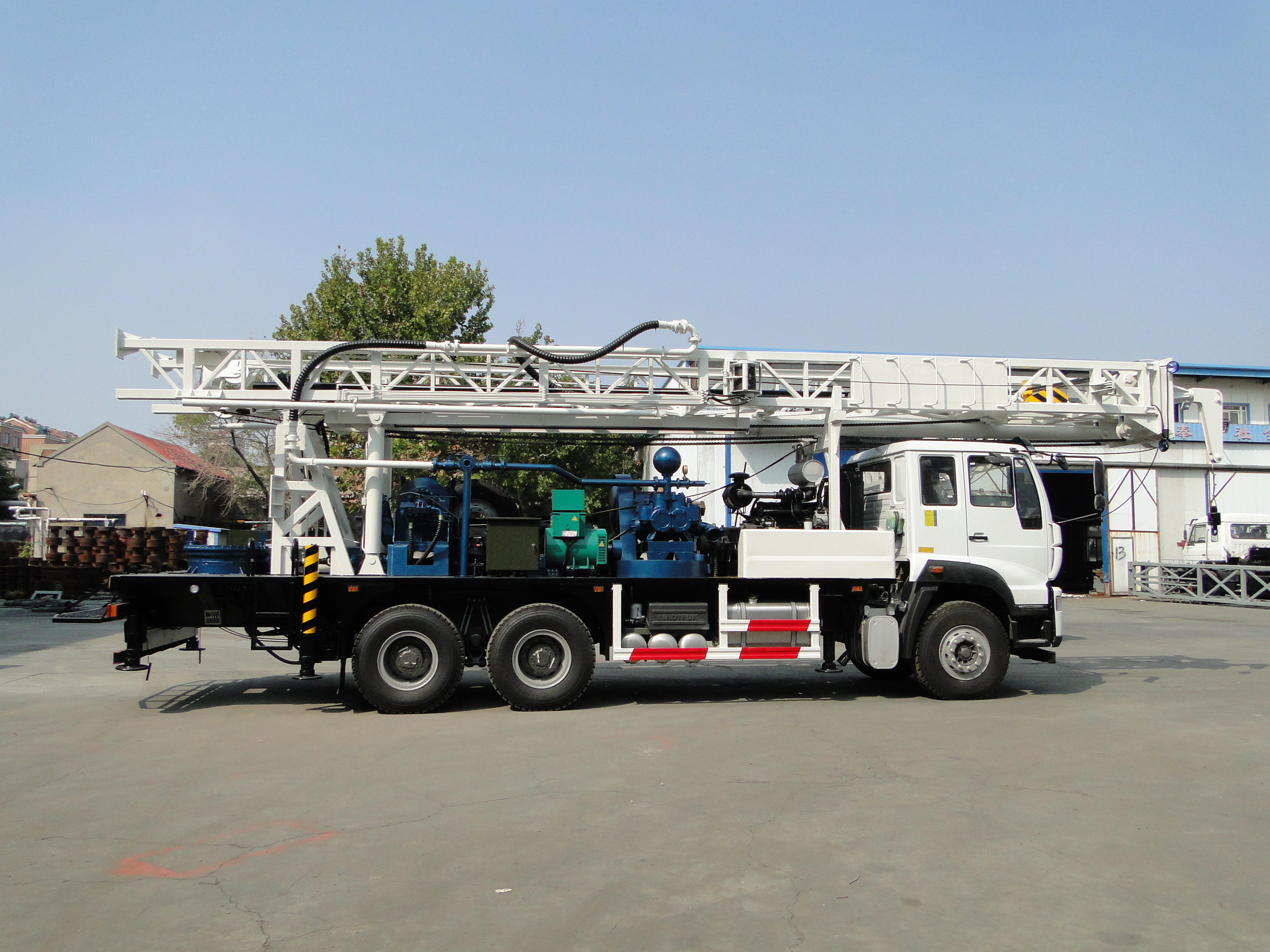

BZCD300XKHW DTH water drilling rig

Description:BZCD300XKHW DTH water drilling rig

Ordering hotline:+86 543 3325896

Send mail to us:welldrillingrig@126.com

Make an inquiry

Depth:300M
Open hole:350MM
Dimensions;8500mm×2500MM×3100MM
Total Weight:14000KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.

Code

Name

Model

1

Truck chassis

HOWO

2

Drilling tower

Drill tower load:20T

Operation:Two hydraulic support cylinders
Drill tower height:5M

3

Pullup-Pulldone cylinder

Pull down:7T
Pull up:15T

4

Outrigger cylinder

Brace:Four hydraulic leg cylinders
Equipped with hydraulic lock to prevent leg retraction

5

Diesel engine

Take power from automobile chassis

6

Hoist

Single rope pull up:2T

7

Hydraulic top head

Torque:7500NM
Revolutions:0-90 RPM

8

Foam pump and

Flow:42L/MIN
Pressure:4MPA
Revolutions:660R/MIN
Improving the up-and-down efficiency of drilling cuttings, cooling and lubricating the impactor

9

Control box

Integrated console
Lifting and boring tower, outrigger cylinder, lifting, lowering, power head , etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.

10

Air compressor

Pressure:17BAR
Air Volume: 19m³/MIN

11

Mud pump

Pressure:3MPA
Flow:450L/MIN
