BZC600CHW Truck mounted water well drilling rig

Description:BZC600CHW is 600m truck mounted water well drilling rig, mud and air drilling

Ordering hotline:0086-543-3325896

Send mail to us:rig@bzdyjx.com

Make an inquiry

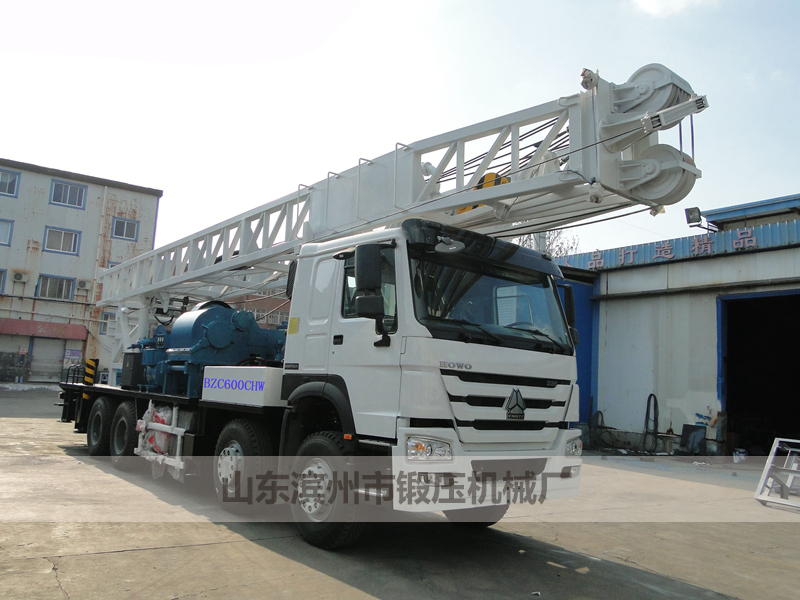

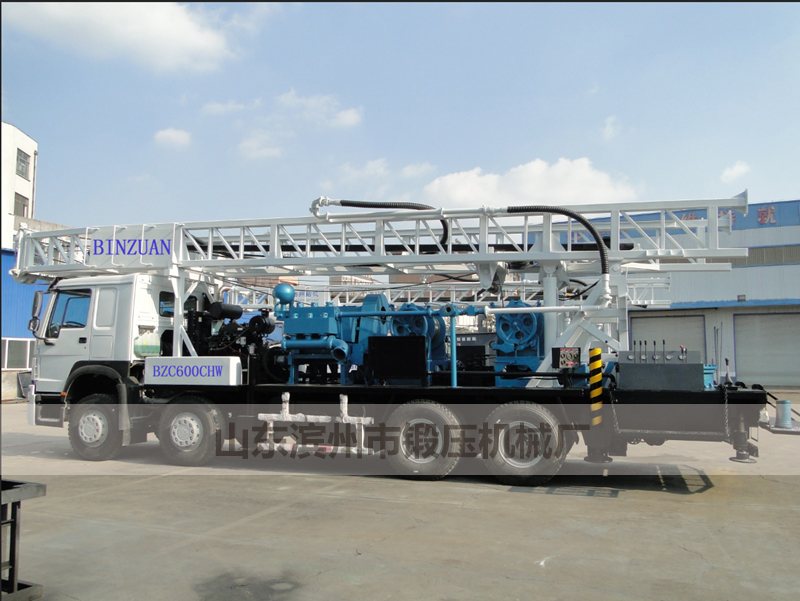

 BZC600CHW 8X4 600m truck mounted water well drilling rig  is designed by our factory.

The drilling rig is reasonable design, complete configuration, superior performance, safe and reliable.

It can drill with various drilling technologies (eg. Mud drilling, air foam drilling, DTH air drilling and air-reverse drilling ) with different drill tools.


Technical parameter

 Drilling depthM

600

 Drilling diametermm

500

 Speed of turntabler/min

13211567 43 25 14,  18(reverse)

 Torque of turntableKN.m

7.4----52

Single rope lifting capacity of main windlass(KN)

50

Maximum lifting capacity of main windlass(KN)

300

Single rope lifting capacity of assistant windlass(KN)

50

Maximum lifting capacity of assistant windlass(KN)

240

 The lifting capacity of hookKN

320

 Bearing capacity of drilling tower (KN)

360

 The height of drilling tower (mm)

16232

Drill pipe

 Kelly barmm

108×108×10500 or 7500

 Assistant pipe (mm)

Ф89×10×9000 or 6000

3NB-130  plunger pump



Theoretical flow (L / min)

1000

Rated pressure (Mpa)

            5

 Input power (kw)

90







Truck chassis

 Drive form

8×4



Engine

 Model

SINOTRUK WD615.69 emission

 Rated powerKW

247

 Speed r/min

2200

 Size L*W*H(mm)

11510*290*2800

Drilling diesel engine

model

 Cummins 6BTA5.9-C180-

Rated power(kw)

132

Max - torque(N.m)

750

Electric         generator

Model

MF

Rated power (kw)

30

Rated voltage(v)

380

Rated current(A)

27

Speed (r/min)

1500

Frequency(Hz)

75

 The highest speedKm/h

75

 Weight kg

32000

 Transport sizeL*W*H(mm)

13500×2500×4200
