BZC600CLCA Truck mounted drilling rig

Description:BZC600CLCA Truck mounted drilling rig

Ordering hotline:+86 543 3325896

Send mail to us:welldrillingrig@126.com

Make an inquiry

DESCRIPTION:



Main features

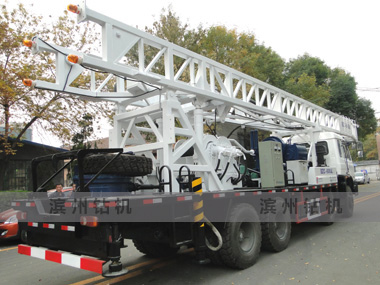

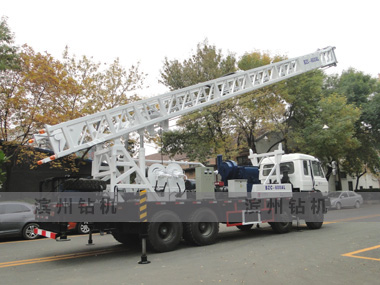

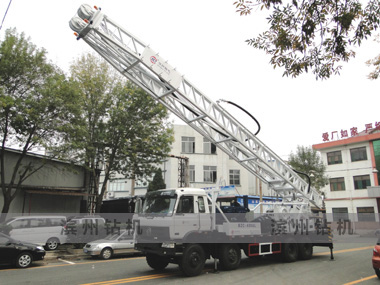

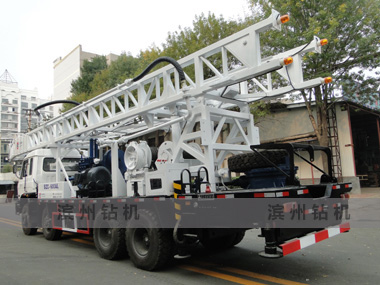

◎BZC600CLCA truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.

◎The truck chassis adopts the 8*6 special crane chassis of brand CHANA TRUCK and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.

◎This rig is a rotary drilling rig with directional circulation. It is equipped with WB1200/12 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

◎The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.

◎We can install the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.

◎We set up a generator (MF) which is convenient to illuminate or work at night.

◎There are pressure device on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

◎The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.

◎ According to client’s requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuang; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with WB1200/12 mud pump; can carry out core-drilling with other special drilling tools.

◎The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.



Technical parameter

Drilling depth(M)

600

Drilling diameter(mm)

500

Speed of turntable(r/min)

117;102;60;38;22;13;16(reverse)

Torque of turntable(KN.m)

5.4----50

Single rope lifting capacity of main windlass(KN)

50

Maximum lifting capacity of main windlass(KN)

300

Single rope lifting capacity of assistant windlass(KN)

60

Maximum lifting capacity of assistant windlass(KN)

240

The lifting capacity of hook(KN)

300

Bearing capacity of drilling tower (KN)

300

The height of drilling tower (mm)

15000

Drill pipe

Kelly bar(mm)

108×108×10500

Assistant pipe (mm)

.Ф89×10×9000



WB1200/12

plunger pump


Diameter of cylinder (mm)

120

Stroke of piston (mm)

140

Theoretical flow (L / min)

1200 970  846  467

Rated pressure (Mpa)

4.5 5.5 6.5 12

Diameter of suction tube (mm)

120

Diameter of drain pipe (mm)

64

Input power (kw)

110




Truck chassis

Drive form

8×6


Engine

Model

YC6A260-33YC water -cooled four strok diesel engine

Rated power(KW)

191

Speed (r/min)

2300

Size (L*W*H)(mm)

11510*2480*2800

Electric generator

Model

MF

Rated power (kw)

15 / 30

Rated voltage(v)

380

Rated current(A)

27

Speed (r/min)

1500

Frequency(Hz)

75

The highest speed(Km/h)

75

Weight (kg)

27500

Transport size(L*W*H)(mm)

15543×2480×4032

Working size(L*W*H)(mm)

11139×2480×16749
