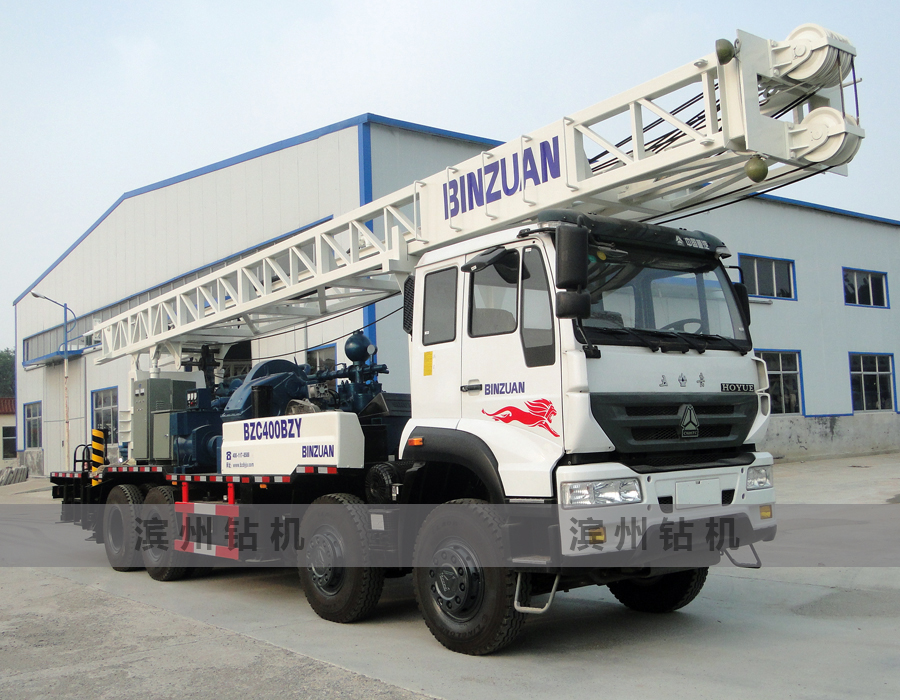

BZC400BCA truck mounted drilling rig

Description:BZC400BCA truck mounted drilling rig is designed by our engineers.It is a kind of truck mounted and rotary drilling rig.

Ordering hotline:+86 543 3325896

Send mail to us:welldrillingrig@126.com

Make an inquiry

Main features

◎BZC400BCA truck mounted drilling rig is designed by our engineers.It is a kind of truck mounted and rotary drilling rig.

◎The truck chassis adopts the 8X4 special crane chassis of brand CHAN'AN TRUCK and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed mechanism are set up on the chassis.

◎This rig is a rotary drilling rig with directional circulation. It is equipped with BW850/2A mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

◎The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.

◎We can install the spare electric engine and clutch implement according to client’s requirement, so that the rig can work with diesel engine or electric engine.

◎We set up a generator (MF) which is convenient to illuminate or work at night.

◎There are pressure device on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

◎The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.

◎ According to client's requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS,Sweden Atlas, China Kaishan,Hongwuhuang; can carry out air lifting reverse circulation drilling with air-water tap,double-wall drilling pipe,gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with 850/2A mud pump; can carry out core-drilling with other special drilling tools.

◎The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.


Technical parameter

 Drilling depth(M)

400

 Drilling diameter(mm)

500

 Speed of turntable(r/min)

117; 102; 60; 38; 22; 13; 14(reverse)

 Torque of turntable(KN.m)

5.4------50

Single rope lifting capacity of main windlass(KN)

40

Maximum lifting capacity of main windlass(KN)

240

Single rope lifting capacity of assistant windlass(KN)

40

Single rope lifting capacity of assitant windlass(KN)

160

 The lifting capacity of hook(KN)

250

 Bearing capacity of drilling tower (KN)

250

 The height of drilling tower (mm)

12503

Drill pipe

 Kelly bar(mm)

108×108×7500

 Assistant pipe (mm)

.Ф89×10×5700







BW850/2A

plunger pump


 Diameter of cylinder (mm)

150

 Stroke of piston (mm)

180

Theoreical flow (L / min)

600      850

Rated pressure (Mpa)

3         2

Pounding  times (min-1)

58        82

 Diameter of suction tube (mm)

127

 Diameter of drain pipe (mm)

64

 Input speed (r / min)

470

 Input power (kw)

40

 Overall dimensions (mm)

2000*1030*1400

Weight (t)

1.5




Truck chassis

 Drive form

8×4


Engine

 Model

YC6A260-33YC water -cooled four strok diesel engine

 Rated power(KW)

191

 Speed (r/min)

2300

 Size (L*W*H)(mm)

11510*2480*2800

Electric generator

Model

MF

Rated power (kw)

15

Rated voltage(v)

400

Rated current(A)

27

Speed (r/min)

1500

Frequency(Hz)

50

Protection level

IP21

Insulation Class

H

 The highest speed(Km/h)

75

 Weight (kg)

19340

 Transport size(L*W*H)(mm)

11981x2480x3870

 Working size(L*W*H)(mm)

11145x2480x13289
