Crawler milti-function drilling rig

Home / Products / Crawler milti-function drilling rig / BZLD400 Crawler rock drilling rig
  • BZLD400 Crawler rock drilling rig

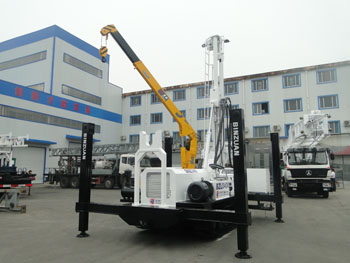

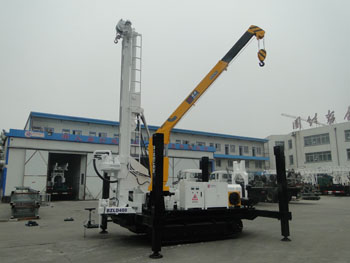

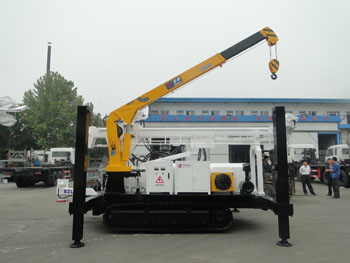

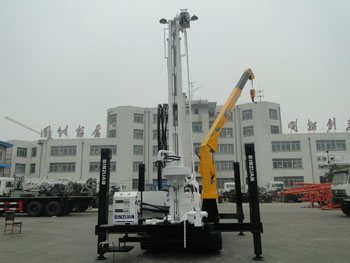

BZLD400 Crawler rock drilling rig

Description:BZLD400 Crawler rock drilling rig

Ordering hotline:0086-543-3325896

Send mail to us:rig@bzdyjx.com

Make an inquiry

DESCRIPTION:









 Main features

BZLD400 Crawler rock drilling rig is designed by our engineers borrowed the advanced technology from domestic and foreign countries

The rig is reasonable design, complete matching, superior performance, easy to operate, easy to repair.

It is hydraulic drive, crawler belt. The drive head is driven by low-speed big torque motor. It has two-gear stepless speed regulating, advanced easy structure, steel wire feeding    system. The drilling rig is well stability, attractive appearance and realizes the design principle of "base on people".

The diesel engine, hydraulic pump, main valve, motor, walking reduction box etc. And the main accessories are famous brand.



Install a 3T crane on the chassis of drilling rig,in order to use more convenient than traditional.

With large torque, high configuration,reasonable design, advanced control way assure the efficient working.

The diesel engine of the drilling rig is low emission、professional drop noise design, so it can used in various construction sites.

It uses advanced load sense control technology  which reduces the power consumption and heating system.

With nice appearance, compact structure, reliable performance, easy operation, the drilling rig is the best choice of hydraulic crawler rock drilling rigs.

The drilling rig can drill in the clay, sand, weathered rock, bed rock and mainly used in hydrogeology survey, water well drilling, underground tunnel, construction of vent hole, geotherm hole etc. It can apply many drilling techniques, like air drilling, foam rotary drilling.







Technical parameter

Drill depth(M)

400

Drill diameter(mm)

320

Drill pipe(mm)

89×10×3000

Wind pressureMpa

1.05-2.46

Air consumption (M3/min)

16-35

Climbing capacity°

20°

Travel speedkm/h

0-2.5

Lifting capacity of winchKN

10

Hoisting speedm/min

50

Rotating speedrpm

1-105

Rotating torqueKN

4.5

Axle pressureKN

44

Lifting capacity of power headKN

130

Slow rise capacitym/min

7.2

Slow feeding capacitym/min

20

Fast rise capacity m/min

14.4

Fast feeding capacitym/min

40

Weightt

11

Overall dimensionmm

6000x2100x3120
